Steel Exhaust Bellows

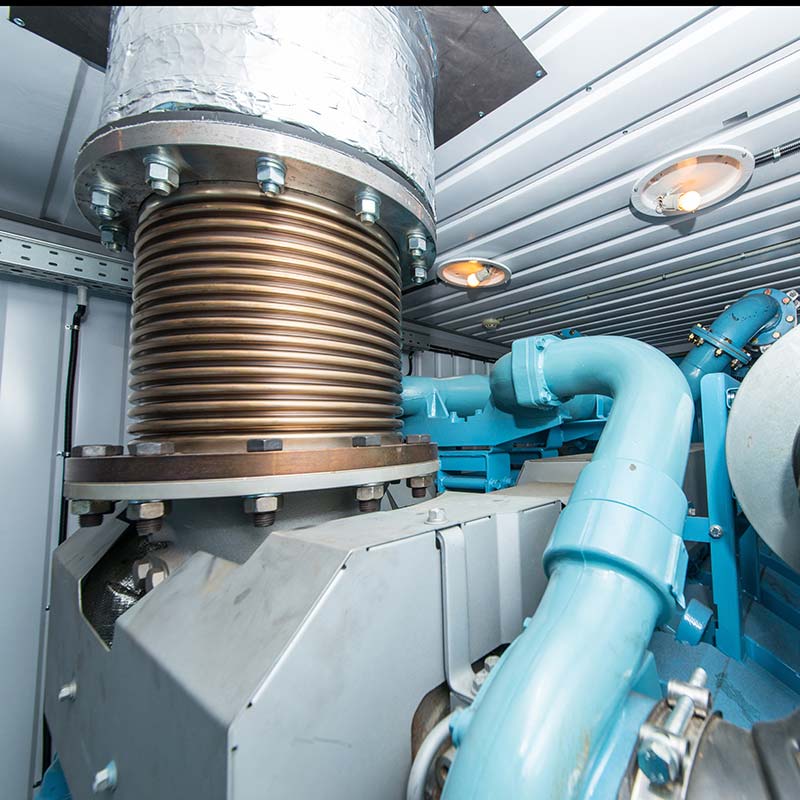

Steel Exhaust Bellows also know as exhaust expansion joints, they are specialised components used in piping systems to accommodate multiple types of movement, including axial, lateral, and angular displacement. They absorb and compensate for larger movement patterns while maintaining the system’s structural integrity.

Exhaust Bellows Construction

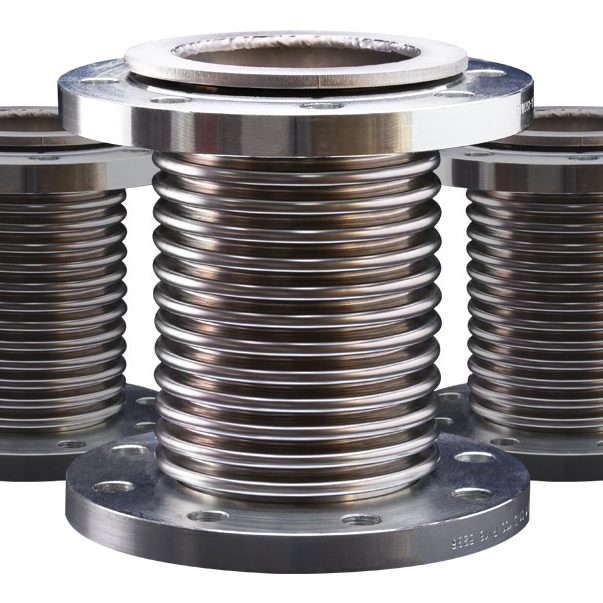

Exhaust bellows feature multiple convolutions made from thin-walled stainless steel tubing. These convolutions provide flexibility in various directions, allowing the bellows to simultaneously accommodate axial, lateral, and angular movement.

Materials

Manufactured from high-quality stainless steel, chosen for excellent corrosion resistance, durability, and temperature resistance. The specific grade of stainless steel is selected based on factors such as the operating environment, temperature range, and compatibility with the conveyed fluid.

Design Considerations

Several factors of the design of stainless steel bellows to ensure optimal performance and reliability:

• Operating Conditions: The design must account for the temperature range, pressure levels, and fluid properties encountered in the application to select the appropriate material and configuration.
• Movement Requirements: The bellows are designed to accommodate a wide range of movement, including axial compression and extension, lateral displacement, and angular rotation. The design must ensure the bellows withstand the maximum expected displacement while maintaining flexibility and structural integrity.
• Pressure Rating: The design considers wall thickness, convolution geometry, and reinforcement to ensure the bellows can sustain the maximum required operating pressure without failure.

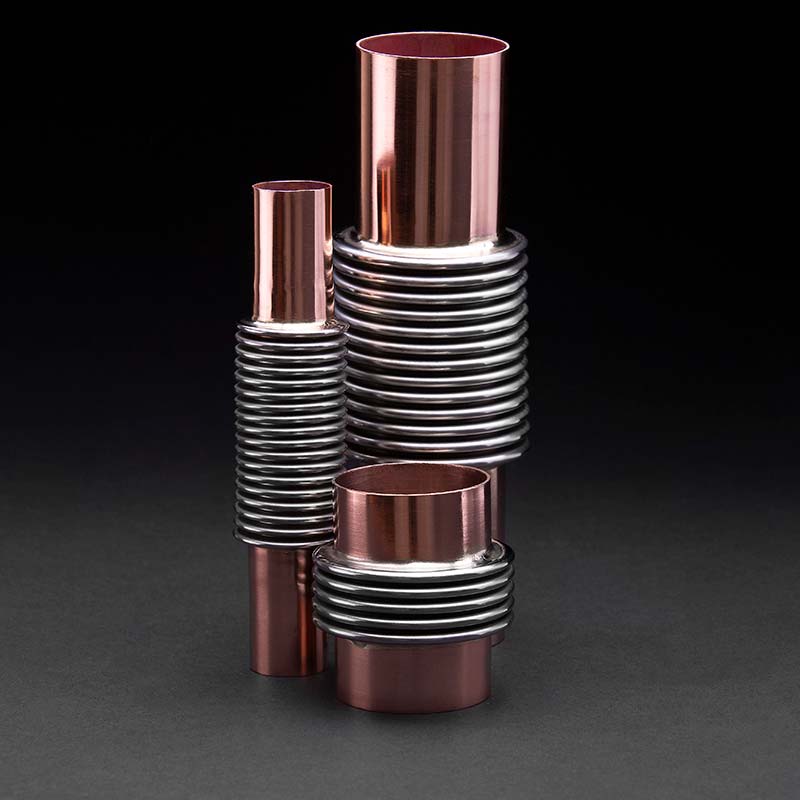

• End Connections: Like other bellows, steel exhaust bellows feature flanged or welded end connections to facilitate installation and connection to the piping system. The end connections must be compatible with the system components and provide a secure seal to prevent leaks.

Applications of Steel Exhaust Bellows

Stainless steel bellows find applications in various industries and systems where complex movement compensation is required, including:

• HVAC (Heating, Ventilation, and Air Conditioning) systems
• Pipeline networks
• Chemical processing
• Petrochemical facilities
• Power generation plants
• Marine and offshore installations

Benefits

• Accommodation of Complex Movement: Steel exhaust bellows provide flexibility in multiple directions, accommodating axial, lateral, and angular displacement simultaneously.
• Vibration and Noise Reduction: Steel exhaust bellows absorb mechanical vibrations and movement, contributing to smoother operation and reduced noise levels in the piping system.
• Longevity and Reliability: These bellows offer durability and resistance to corrosion, ensuring a long service life with minimal maintenance requirements.

In summary, stainless steel exhaust bellows are critical in accommodating complex movement patterns in piping systems. They provide flexibility, reliability, and longevity in diverse industrial applications.
